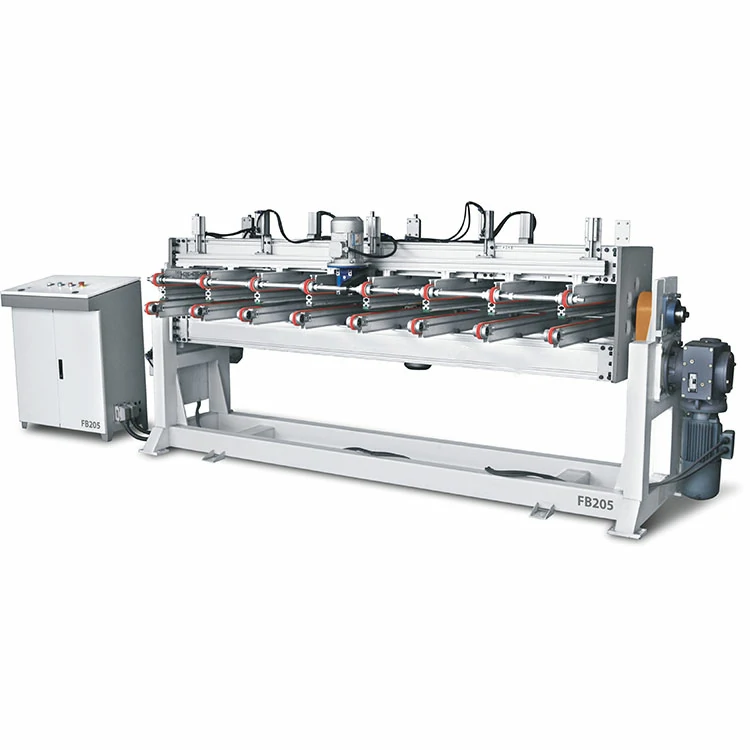

Horizontal Panel Flipping Machine
Machine name | Horizontal Flipping Machine |
Equipment type | FB 205 |
Workpiece width | 300~1200mm |
Workpiece length | 400~2400mm |
Workpiece thickness | 10~60mm |
Workpiece Max. Weight | Max.50KG |
Rolling over speed | 4/min. |
Working air pressure | 0.4-0.6MPa |
Power | 380V 50Hz |
Feeding height | 900~950mm |
The structure of the bottom cutter shaft can be pulled out quickly, which results in a more convenient and secure replacement or adjustment of the cutter.
The working table is made of unique wear-resistant material, precision machined, with a bright surface and good accuracy, and wear-resistant.
They imported Schneider Electric to provide new energy for the equipment.
High-precision magnetic grating digital display, accuracy up to 0.01mm, direct input of the thickness of the processed wood automatic positioning.
The feeding mechanism can be fine-tuned up and down, and the lifting range can be up to 6mm to improve significantly the machining precision.
They are equipped with an upper and lower active feeding roller structure, feeding faster and smoother, and fitted with an overload protection mechanism.
Equipped with a short material processing device, it ensures smooth processing of short materials and improves wood utilization.
Imported automatic lubrication pump and forced lubrication of feeding parts with no oil protection function.
Bearing selection of imported brands: TR, NSK, SKF, FAG, SNR.
Short feed, feed roller holder unit (optional).
Automatic thickness setting and shell falling limit protection device.
The bed is made of resin sand casting, which is not easy to deform and has strong stability.
