VK-B718D Seven-Spindle Four-Side Moulder
The VK-B718D is a seven-spindle, four-side molder for machining the top, bottom, left, and right faces of a wood workpiece in a single continuous feed path. Its cutter configuration can be designed to match the required finished profile.
- 7 Spindles
- Four-Side Machining
- Profile Production
- Quick Answer
“What Does the VK-B718D Seven-Spindle Molder Do?
The VK-B718D guides a wood workpiece through seven cutter stations, allowing multiple faces and profile features to be processed in a single continuous feed cycle. The final cutter arrangement must match the required finished section.
Suitable When
Choose this machine when your workpiece requires four-side machining and additional profile-forming operations within the same configured process.
Send Before Quotation
Provide the finished-profile drawing, raw-stock dimensions, wood species, minimum workpiece length and target output.
Confirm First
The spindle sequence, cutterheads, cutting range, and workshop requirements must be confirmed before a quotation is provided.
- Quick Answer
“Why Use a Seven-Spindle Four-Side Molder?
The additional cutter station gives the production process more flexibility to combine compatible sizing and profile-forming operations around the required finished cross-section.
Machine Four Faces in One Feed Path
The workpiece can be machined on the top, bottom, left and right sides while travelling through the configured cutter sequence.
Reduce Separate Handling Steps
Compatible machining operations may be combined to reduce repositioning between individual machines or separate processing stages.
Configure the Process Around the Profile
The finished cross-section is used to determine cutterheads, spindle assignment, and the required machining sequence.
- Working Principle
How the Seven-Spindle Process Works
The workpiece enters through the feed system and passes successive cutter stations. Each station is assigned according to the raw stock, finished-profile drawing and approved cutterhead plan.
Feed and Guide the Workpiece
The feed system moves the workpiece through the machining area while the guidance and pressure components support its travel.
Machine the Required Faces
The configured cutter stations process the selected reference, upper, lower and side surfaces.
Form the Required Profile
Additional cutter stations perform the approved profile-forming operations.
Deliver the Finished Workpiece
The processed component exits the machine for inspection or the next production stage.
- Applications And Profile Samples
Wood Profile Applications Shown in the VK-B718D Catalog
The supplied VK-B718D catalog shows profile examples for door frames, kitchen frames, photo frames, flooring, wallboard, window frames, table parts, handrails, and cabin components. These samples illustrate potential applications of the seven-spindle four-side molder, rather than a single universal tooling configuration. Final compatibility should be confirmed based on the raw-stock dimensions, the finished cross-section drawing, and the cutterhead plan before quotation.
Door frame
Kitchen frame
Photo frame
Flooring
Wallboard
Window frame
Table part
Handrail
Cabin part
Configure the VK-B718D for Your Wood Profile
Different wood profiles require suitable cutterheads, spindle arrangements, and machining steps. Send your raw-stock dimensions, finished cross-section, and production target so LINKYOU can review the application and confirm a suitable VK-B718D configuration before providing a quotation.
Please provide:
- Raw-stock dimensions and finished cross-section drawing
- Wood species and incoming material condition
- Minimum and maximum workpiece dimensions
- Required machining allowance and profile details
- Target output or preferred feed speed
- Local voltage, frequency, and dust-collection conditions
- Key Machine Details
Key Operating Areas of the VK-B718D
Review the main operating and connection areas of the VK-B718D to understand how workpieces enter the machine, where the operator controls are located, and what workshop connections should be considered before installation

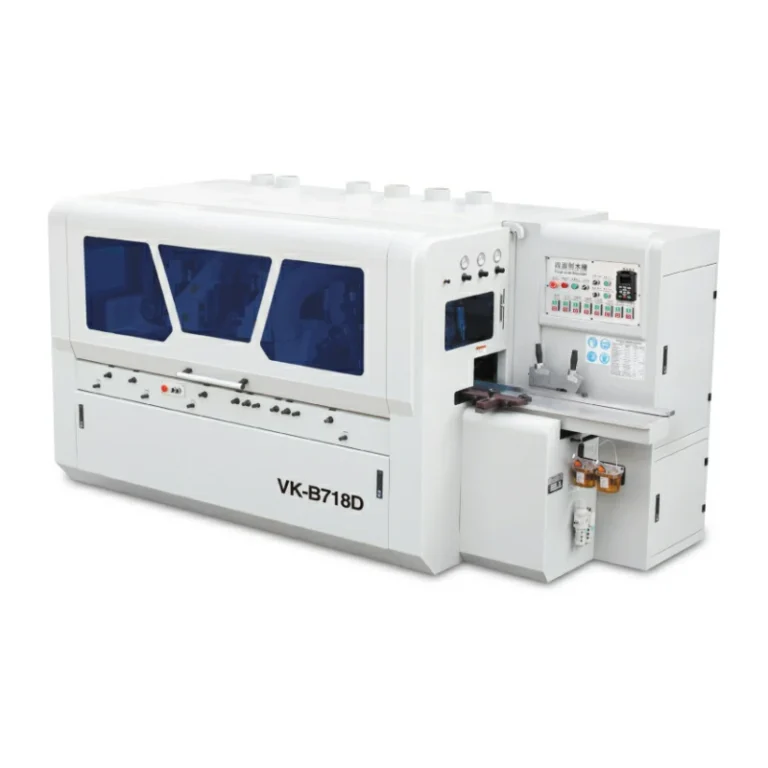

Enclosed Machine Body
The main machining area is housed within the machine enclosure, with front viewing windows for observing the internal processing area
Enclosed Machine Body
The infeed table and guidance components position the workpiece as it enters the sequential spindle machining path.
Operator Control Panel
The control panel groups the available spindle switches and feed controls beside the infeed area for machine setup and routine operation.
Dust-Collection Connections
The upper dust-collection connections allow the machine to be linked to the workshop extraction system. Confirm the required duct arrangement before installation.
Air Preparation Unit
The air preparation unit is installed near the infeed area to connect to and adjust the machine’s pneumatic supply.
- Profile & Tooling Review
Confirm the VK-B718D Cutterhead Configuration for Your Finished Profile
The VK-B718D is a seven-spindle four-side molder for producing different wood profiles. The required cutterhead shapes, dimensions, and machining sequence depend on the incoming workpiece and the desired finished cross-section. Send the following information so the tooling configuration can be reviewed before quotation.
Information to Send
- Finished cross-section drawing with dimensions
- Raw-stock length × width × thickness
- Wood species and incoming material condition
- Required machined surfaces and surface finish
- Target production output
Seven-Spindle Processing Layout
Catalog schematic of the VK-B718D spindle layout and workpiece feed direction. Final cutterhead specifications are confirmed according to the required workpiece profile
Items Confirmed Before Quotation
- Compatibility with the VK-B718D processing range
- Suitable cutterhead types and dimensions
- Machining sequence for the required profile
- Feeding and workpiece-pressure requirements
- Need for sample testing or trial processing
Ready to Review Your VK-B718D Tooling Configuration?
Send your raw-stock dimensions, finished cross-section drawing, and target production output. LINKYOU will coordinate the cutterhead and machining sequence review before quotation.
- Technical Data
Confirmed VK-B718D Machine Information
The VK-B718D is identified in the supplied catalog as a seven-spindle four-side molder. Model-specific processing capacity, feed speed, motor configuration, dust-collection requirements, and installation dimensions should be confirmed in the technical proposal before ordering.
Specification | VK-B718D |
Working width | 25-180 mm |
Working thickness | 8-130 mm |
Minimum working length (intermittent/continuous) | 580/300 mm |
Cutter spindle diameter | Φ40 mm |
Feeding speed | 5-40 m/min |
Main spindle speed | 7000 r/min |
Trimming cutter diameter | Φ145/Φ150 mm |
First lower cutter diameter | Φ125 mm |
Left and right cutter diameter | Φ110-Φ160 mm |
First upper cutter diameter | Φ125-Φ160 mm |
Second upper cutter diameter | Φ125-Φ160 mm |
Second lower cutter diameter | Φ125-Φ180 mm |
Total motor power | 40.25 kW |
First lower cutter motor | 4 kW |
Left and right cutter motor | 5.5 kW |
First upper cutter motor | 7.5 kW |
Second upper cutter motor | 5.5 kW |
Second lower cutter motor | 7.5 kW |
Feeding motor | 4 kW |
Lifting motor | 1.5 kW |
Pneumatic source pressure | 0.6 MPa |
Dust outlet diameter | 6 x Φ150 mm |
Overall size with cover | 3680 x 1550 x 1800 mm |
Overall size without cover | 3610 x 1300 x 1660 mm |
Weight | 3400 kg/2900 kg |
Need Help Confirming Your VK-B718D Configuration?
Share your raw-stock dimensions, finished profile drawing, target production output, and local electrical standard. LINKYOU will coordinate a review of the machine capacity, cutterhead requirements, and installation conditions before quotation.
- Buyer FAQ
VK-B718D Seven-Spindle Four-Side Molder FAQ
These FAQs explain how the VK-B718D processes wood components, how profile compatibility is reviewed, and what workpiece and workshop information is required before quotation.
What does a four-side molder do?
A four-sided molder feeds a straight wood workpiece through multiple cutter stations to machine its top, bottom, left, and right faces in a single pass. The cutterhead design determines whether the process performs dimensioning, profiling, or both.
How many spindles does the VK-B718D have?
The supplied catalog identifies the VK-B718D as a seven-spindle, four-side molder. The final cutterhead specifications and machining sequence should be confirmed according to the required finished profile.
Can the VK-B718D produce every profile shown in the catalog?
Not automatically. The catalog samples illustrate potential profile applications rather than guaranteed compatibility with every workpiece. The finished cross-section, raw-stock dimensions, wood condition, and cutterhead configuration must be reviewed before production.
How is the cutterhead configuration confirmed?
Send a dimensioned finished cross-section drawing together with the raw-stock dimensions. LINKYOU will coordinate a technical review of suitable cutterhead types, cutter dimensions, and the machining sequence before providing a quotation.
What is the minimum workpiece length?
The minimum working length should be confirmed from the VK-B718D-specific technical data. Please provide the shortest workpiece length, especially when processing short components, before requesting a quotation.
What workshop utilities should I prepare?
Provide your local voltage, frequency, and phase, together with information about the available dust-collection and compressed-air systems. Final connection requirements should be confirmed in the technical proposal.
What information should I send before requesting a quotation?
Send the wood species, raw-stock dimensions, minimum workpiece length, finished profile drawing, required surface finish, target production output, local power standard, and available installation space.
- Technical Inquiry
Request a VK-B718D Configuration Review
Share your workpiece dimensions, finished profile, production target, and workshop conditions. LINKYOU will coordinate a technical review of the machine capacity, cutterhead requirements, and installation conditions before quotation.
- Workpiece and finished-profile compatibility review
- Cutterhead and machining-sequence review
- Workshop utilities and installation review
