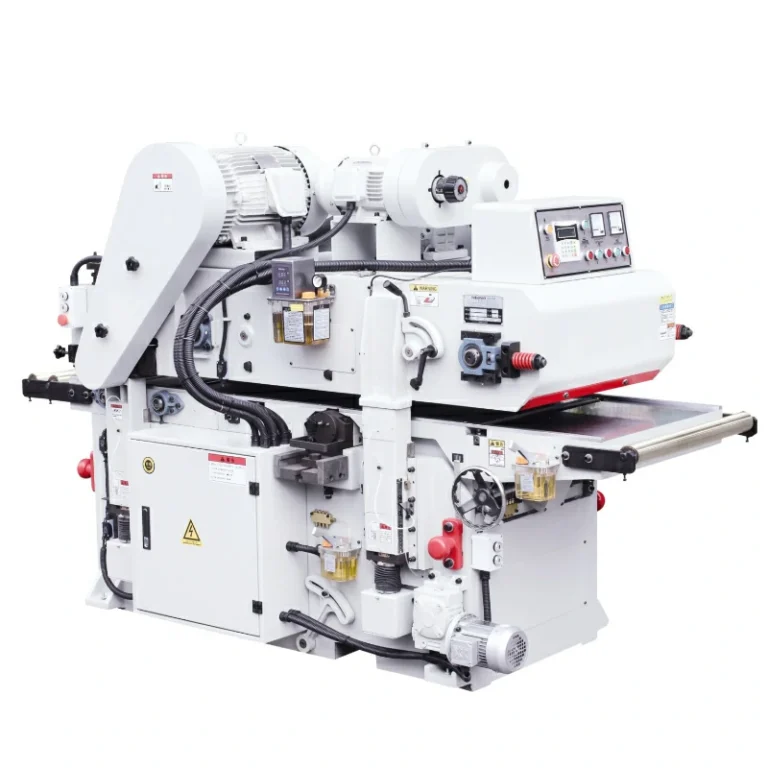

VK-B470B / VK-B630B Double-Sided Planer Machine
Designed for factories that require consistent, fixed-thickness preparation, this B-series machine family planes the upper and lower faces of wood boards in a single pass. Choose VK-B470B for boards up to 470 mm wide or VK-B630B for boards up to 630 mm wide.
- The VK-B470B and VK-B630B are double-sided planers for fixed-thickness wood preparation. Upper and lower cutter spindles machine both faces in a single feed path, with stepless speed regulation from 7–13 m/min.
- Quick Answer
“Is This the Right Planer for Your Process?
A double-sided planer is the correct choice when your next process needs a board with machined top and bottom faces. It is a thickness-preparation machine, not a replacement for a four-side planer that also machines both edges.
Two faces
Top and bottom surfaces are machined in one pass.
Not four faces
It does not machine the left and right edges or create profiles in the same pass.
9–200 mm
Listed working-thickness range for both B models.
- Model Choice
Choose Working Width Before You Compare Price
Both models share the same listed working-thickness range of 9–200 mm and feed-speed range of 7–13 m/min. Your board width, workshop footprint and available electrical capacity determine whether the 470 mm or 630 mm model is the appropriate starting point.
VK-B470B
10–470 mm working width
9–200 mm working thickness
15.57 kW total power
7–13 m/min feed speed
VK-B630B
10–630 mm working width
9–200 mm working thickness
25.07 kW total power
7–13 m/min feed speed
- Board Flow
One Feed Path for Top-and-Bottom Planing
The board is fed across the worktable while the upper and lower cutter spindles machine both faces during the same pass. This creates a clear preparation step before later ripping, edge machining, sanding or profiling operations.
Infeed
Guide the board into the machine.
Support
Move the board across the worktable.
Plane
Machine upper and lower faces in the same pass.
Outfeed
Send the board to the next process.
Match the Double-Sided Planer to Your Board Preparation Process
Share your board dimensions, material condition, and production target. LINKYOU will help confirm the suitable working width, cutterhead configuration, and installation requirements for your double-sided planing process.
- Material type and board construction
- Maximum and minimum board length × width × thickness
- Current thickness and required material removal per pass
- Required output or target feed speed
- Preferred cutterhead configuration
- Local voltage, frequency, and dust-collection arrangement
- Available installation space and next woodworking process
- Feed-Speed Control
Stepless Feed-Speed Regulation
VK-B470B and VK-B630B are listed with stepless feed-speed regulation, allowing the board feed rate to be adjusted within the 7–13 m/min range for different material conditions and machining requirements.
Listed feed-speed range
7–13 m/min
Select the Speed for Your Process
Feed speed should be selected during commissioning according to wood condition, board width, cutting depth, cutterhead configuration, and the required surface quality or production output.
- Machine Details · Feature Grid
Details That Support Setup, Feeding and Maintenance
These visible machine details affect routine cutter service, thickness setting, board movement, and lubrication. Showing real close-ups gives buyers practical evidence of the structures they need to inspect before selecting a configuration.
Precision Worktable Detail
Adjustable feed unit
Resin-sand-cast body
Pull-out bottom cutter shaft
Magnetic grating display
Upper / lower active feed rollers
Automatic lubrication pump
Confirm Your Board Requirements Before We Recommend a Model
Share your board material, maximum width, thickness, minimum working length, required thickness reduction, power supply, and dust-collection details. We will help you select the suitable VK-B470B or VK-B630B configuration.
- Cutterhead Options
Choose the Right Cutter Spindle Configuration
Cutter spindle selection should be confirmed before the quotation, as it determines the final machine configuration and the tool maintenance plan. The catalog lists the heavy-duty spiral cutter spindle as standard, while spiral and ordinary cutter spindles are optional. Confirm the final configuration with LINKYOU before quotation.
Heavy-Duty Spiral Cutter Spindle
Insert size: 30 × 12 × 1.5 mmVK-B470B: 140 insertsVK-B630B: 180 inserts
Spiral Cutter
Spindle
Insert size: 15 × 15 × 2.5 mmVK-B470B: 120 insertsVK-B630B: 170 inserts
Ordinary Cutter
Spindle
Cutter size: 470 / 630 × 38 × 6 mmQuantity: 3 × 2 = 6 pcs
* Catalog listing. Confirm the final standard scope and cutter spindle configuration with LINKYOU before the quotation.
- Models & Technical Data
Technical Specifications of VK-B470B and VK-B630B
Use the following data to check whether either model fits your board size, electrical supply, dust-collection connection and installation space. All values are catalogue references and should be reconfirmed before order.
Specification
VK-B470B
VK-B630B
Working thickness
9–200 mm
9–200 mm
Working width
10–470 mm
10–630 mm
Min. working length
300 (200) mm*
300 (200) mm*
Max. cutting depth
Top 5 / Bottom 5 mm
Top 5 / Bottom 5 mm
Blade diameter
100 mm
100 mm
Spindle speed
5,000 r/min
5,000 r/min
Feed speed
7–13 m/min
7–13 m/min
Upper / bottom motor
7.5 / 5.5 kW
15 / 7.5 kW
Total power
15.57 kW
25.07 kW
Dust outlet
2 × 150 mm
2 × 150 mm
Voltage
380 V
380 V
Overall size
2650 × 980 × 1800 mm
2650 × 1150 × 1800 mm
Net weight
2200 kg
2500 kg
Need Help Selecting the Right Double-Sided Planer?
Share your board material, maximum working width, thickness range,
minimum workpiece length, planned material removal per pass, local voltage, and dust-collection details. LINKYOU will help you compare the VK-B470B and VK-B630B and confirm a suitable cutter spindle configuration.
- Buyer FAQ
VK-B470B/B630B Double-Sided Planer FAQ
This FAQ answers practical questions about model selection, processing capacity, cutter spindle options, and installation requirements for the VK-B470B and VK-B630B. Confirm the final configuration with LINKYOU before the quotation.
What is the main difference between VK-B470B and VK-B630B?
The main difference is the maximum working width. VK-B470B is listed for boards from 10 to 470 mm wide, while VK-B630B is listed for boards from 10 to 630 mm wide. The listed total power is 15.57 kW for VK-B470B and 25.07 kW for VK-B630B.
Can this machine machine the top and bottom faces in one pass?
Yes. The upper and lower cutter spindles machine both board faces along the same feed path. The machine is used for fixed-thickness preparation prior to subsequent woodworking operations.
Can this machine process all four sides of a board?
No. VK-B470B and VK-B630B machines can only machine the top and bottom faces. If the left and right edges must also be machined or profiled, a four-side planer is the more suitable machine category.
What board thickness and width can the machine process?
Both models are listed for a working thickness of 9–200 mm. VK-B470B has a listed working width range of 10–470 mm, while VK-B630B has a listed working width range of 10–630 mm.
What is the minimum working length?
The catalog lists a minimum working length of 300 (200) mm. Because the catalog does not define the condition for the bracketed 200 mm value, please provide your actual minimum workpiece length for technical confirmation before quotation.
What is the maximum cutting depth?
The listed maximum cutting depth is 5 mm for both the top and bottom faces. The appropriate material removal for a specific board should be determined based on the material condition and machining requirements.
Is the feed speed adjustable?
Yes. Both models are listed with stepless feed-speed regulation and a feed-speed range of 7–13 m/min. The final operating speed should be selected during commissioning according to the board condition, cutter spindle configuration, and required production rhythm.
Which cutter spindle is supplied with the machine?
The catalog lists a heavy-duty spiral cutter spindle as standard, while spiral and ordinary cutter spindles are optional. Confirm the final standard scope and cutter spindle configuration for the selected model before quotation.
What utilities and installation space should I prepare?
The catalog lists 380 V power and two 150 mm dust outlets. The listed overall size is 2650 × 980 × 1800 mm for VK-B470B and 2650 × 1150 × 1800 mm for VK-B630B. Please also allow practical space for material infeed, outfeed, operation, and maintenance when planning installation.
